Fluorescence Microscopy – LED Light Source for Microscopes
개요
Mercury-free Lighting
Low Power Consumption
Low power consumption delivers significant savings in whole life costs.
Zero Toxicity Materials
LED light does not use any toxic materials making it safer with no disposal costs and problem.
Reduced Out-of-band Photo Bleaching
Reduced out-of-band photo bleaching and filter bleed-through to deliver clearer images.
Controllable Low Level Light
Highly controllable light levels deliver reduced photo bleaching and toxicity.
특징

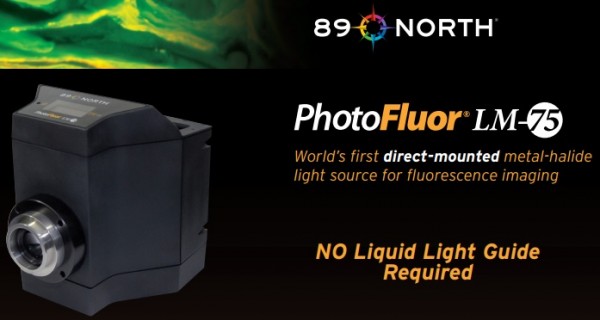

제품명 : PhotoFluor LM-75
제품설명: 다이렉트 방식의 현미경용 형광조명 장치
장점 - 현미경 메이커(Leica, Zeiss, Nikon, Olympus 외) 상관없이 장착 가능
- 다이렉트 마운팅 방식으로 높은 효율
- Mercury 광원대비 긴수명 * 높은 파워
- 저렴한 가격
단점 - 컨트롤러 일체형 방식으로 큰 부피
- 팬 소음 발생
소모품 - 램프(재고보유)

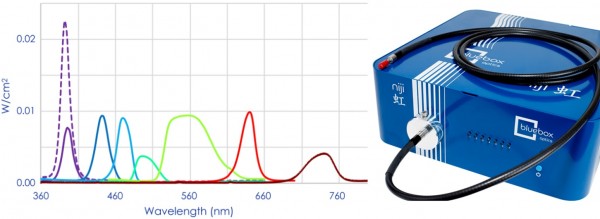

niji (UV~NIR; DAPI~Cy7)
특징
The niji is a revolutionary innovation in mercury-free microscopy, taking advantage of recent advances in lighting technology. With a much smaller environmental impact, this low cost modular LED source with single or multiband wavelength illumination is leading the way. We care about the environment and are trying to help users who care too. The niji can help you to remove dangerous toxins and has far less power consumption than damaging mercury lamps, helping to do your bit toward the environmental impact of research. We’ve tried to use the latest technology to reduce the impact of production but also used old technology and made our packaging recyclable or degradable where possible. You may also be able to benefit from a sustainability grant from your institution to help you switch to new “green tech”. Find out more with our very approximate running cost comparison example (*costs will vary around the world, this is meant for illustrative purposes!).
Individually addressable, individually filtered LED channels
The niji delivers powerful, multi-wavelength excitation from the UV to the NIR, specifically designed for single and multiband fluorescence microscopy.
Fully compatible with microscopes and microscope software
Fully compatible with most standard microscopes, MicroManager, MicroManager 2, Metamorph and a wide range of other software packages from the major manufacturers. Contact us for more information. We also supply a universal collimator with common adapter rings for mechanical fitment.
Individual excitation filters
Each LED can be filtered at the source, allowing the user to sequence images very quickly.
Constant current and optical power LED drive modes
Both constant current and constant optical power LED drive modes are selectable, enabling fast imaging speed and high excitation power stability over long periods.
User-changeable LEDs and filters
niji’s uniquely reconfigurable mainframe allows you to change LEDs and filters easily in minutes, offering additional excitation centre wavelengths, excitation bands, and output power options.
Control individually or simultaneously
Wavelength, power, and emission channel can all be controlled using the manual controller (tablet), via software, or both at the same time. If you would like to find out more about our niji LED light source for single and multiband fluorescence microscopy, please contact us today.
Dimensions & Weight315 x 288 x 107 mm, 4.7 kg

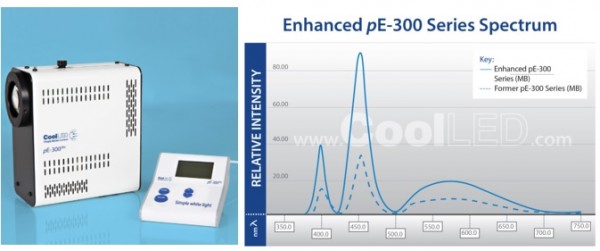

pE-300lite (UV ~ Cy5)
특징
pE-300lite is a simple white light LED illumination system that offers intense, broad-spectrum LED illumination for fluorescence microscopy. The system is perfect for hospital and regular research laboratory environments and is affordable within consumables budgets.
This mercury-free alternative is safer, more controllable and precise than conventional bulb illumination options. Spectral coverage is from the UV (DAPI excitation) to the Red region (Cy5 excitation).
Simple to Buy
- Works with everyday fluorophores
- Affordable through lab consumables budget
- Broad spectrum – covers UV (DAPI) to Red region (Cy5)
- Specify for existing single and multi-band filter sets – no need to buy new filters
Simple to Fit
- Direct fit to the microscope in seconds
- Wide range of microscope adaptors – fits most microscopes
- No alignment, a once only adjustment
Simple to Use
- Instant on/off – no shutters required, no warm up or cool down
- Stable and repeatable – reliable and precise results
- Fine irradiance control in 1% steps (0-100%) – no ND filters required
- Excellent uniformity over field of view – fixed and stable, no alignment necessary
Dimension & weghit - 77 mm(w) x 186 mm(d) x 162(h) – Weight 1.4 kg

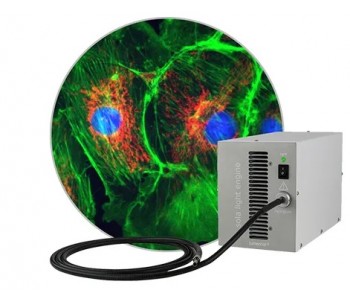

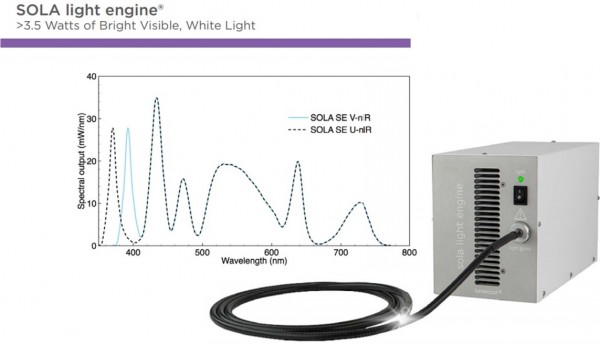

SOLA light engine® (UV ~ NIR; DAPI ~ Cy7, ICG)
특징
Lumencor’s SOLA light engines are the market leaders in modern solid-state illumination for microscopy and other life science applications. Why tolerate the limitations of an archaic arc lamp in your microscope when such a reliable and technically superior replacement is within easy reach? Generating bright, stable and dependable white light output while requiring no routine maintenance and no consumables, SOLA Light Engines have rapidly displaced mercury arc lamps. Lumencor has further improved the SOLA light engine product line with the addition of near infrared (nIR) output in the ~735nm spectral region. The NEW SOLA SE nIR light engines retain all the bright visible-range output customers have come to associate with the SOLA brand. The extended near infrared (nIR) output provides additional utility for excitation of fluorophores such as Cy7 and ICG, and for other applications that benefit from the enhanced tissue penetration of nIR light. Practically useful levels of nIR output have never been obtainable from mercury lamps.
Sources
Multiple solid state sources operating simultaneously to produce white light
Power
~ 3.5-4 W white light output though 3 mm dia liquid light guide (LLG)
Wavelength Range
380~760 nm SOLA SE V-nIR 350~760 nm SOLA SE U-nIR
Light Delivery - 3 mm dia liquid light guide; LLG and microscope collimator sold separately
Easy to Install - Pre-aligned, no maintenance
Power Requirements - 24 VDC, 5 A or 9A
Warmup Time 1 Second
Weight & Dimensions - 3.6 kg 125 mm x 263 mm x 163 mm
