개요
iXon EMCCD Cameras
With the iXonEMCCD cameras, Andor have delivered a dedicated, truly high-end, yet accessible ultrasensitive scientific camera platform, designed specifically to drive the absolute best from EMCCD technology across all critical performance specs and parameters.
iXon Life - Exclusively for Fluorescence Microscopy
- Single photon sensitivity
- Back-illuminated > 95% QE
- Fast frame rates
- Unique price/performance
- The ultimate detector for single molecules
- Preserve accurate cell physiology
- Available with new SRRF-Stream+ super-resolution technology
특징
| Models | iXon 888 | iXon 897 |
| Core attributes | Field of view, sensitivity and speed | Sensitivity and speed |
| Sensor format | 1024 x 1024 | 512 x 512 |
| Sensor diagonal | 18.8 mm | 11.6 mm |
| QE Options | BV (Life) or BV, EX2, UVB (Ultra) | BV (Life) or BV, EX2, UVB (Ultra) |
| Pixel Size | 13 µm | 16 µm |
| Frame Rate | 26 fps (670 fps with 128 x 128 Crop Mode) | 56 fps (595 fps with 128 x 128 Crop Mode) |
| Read Noise | < 1 e- with EM Gain | < 1 e- with EM Gain |
| Pixel well depth | 80,000 e- | 180,000 e- |
| Interface | USB 3.0 | USB 2.0 |
스펙
SRRF-Stream+ is our enhanced real time super-resolution microscopy functionality that operates on Andor’s iXon Life and iXon Ultra EMCCD cameras.
Aligned with Andor’s vision that super-resolution should be easily accessible to all, ‘SRRF-Stream+ enabled’ cameras unlock the means to perform real time super resolution microscopy on conventional modern fluorescence microscopes. Resolution improvement from 2- to 6-fold (50-150nm final resolution) can be expected dependant on the original dataset.

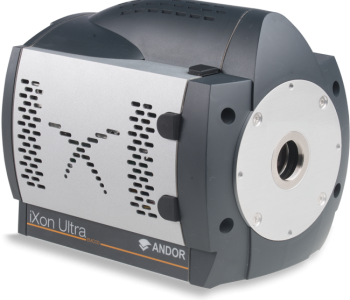

iXon Ultra
Driving the absolute best from EMCCD technology
For when only the best will do. The market leading EMCCD camera, Andor’s iXon Ultra has been long recognised as the highest performance, most versatile solution for the most demanding of light starved applications. Available for both physical and life science applications, iXon Ultra delivers unbeatable flexibility and functionality, offering market leading TE cooling, ‘2-in-1’ EMCCD and CCD readout modes and a host of other high-end functionality.
New iXon Life
High performance at a low price!
Andor’s latest iXon Life EMCCD platform is available exclusively for fluorescence microscopy applications and is engineered to deliver single photon sensitivity with absolutely unparalleled price/performance. With unmatched sensitivity, iXon Life is perfect for single molecule detection and live cell microscopy with minimized phototoxicity or photobleaching, but at a price not normally associated with high-performance EMCCD cameras.
| | iXon Ultra | iXon Life |
| Conventional CCD Amplifier | Yes | - |
| Integrated Shutter | Yes | - |
| Minimum TE Cooling Temperature | -100 °C | -80 °C |
| Direct Data Access (CameraLink) | Yes | - |
| EMCCD Mode Readout speeds (MHz) | 888 model - 30, 20, 10 & 1897 model - 17, 10, 5 & 1 | 888 model - 30 & 10897 model - 17 & 10 |
| Single Photon Counting Modes | Yes | - |
| SRRF-Stream+ Compatible | Yes | Yes |
