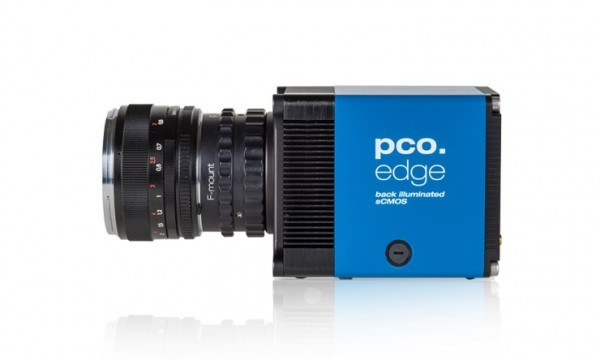

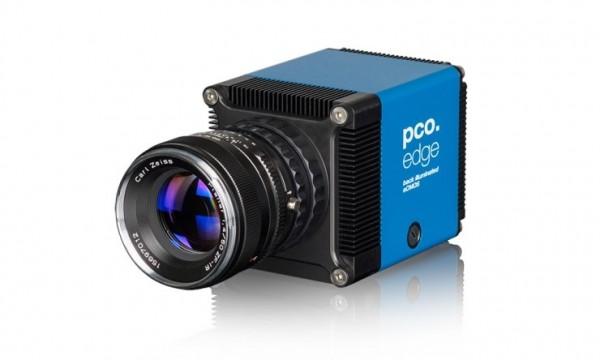

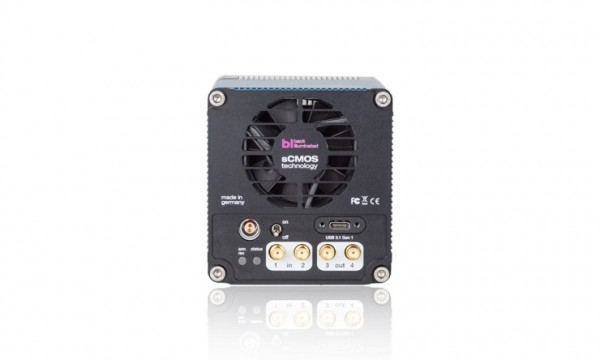

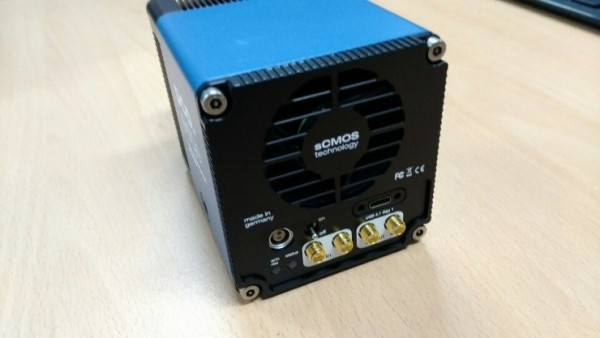

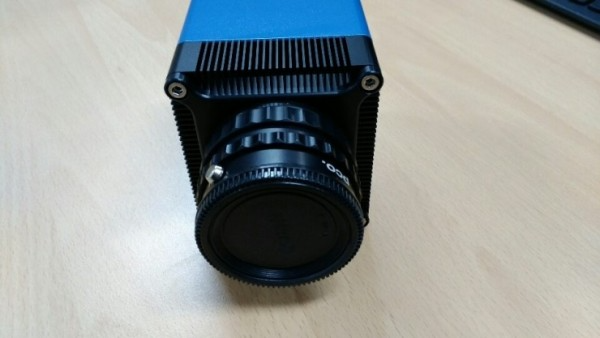

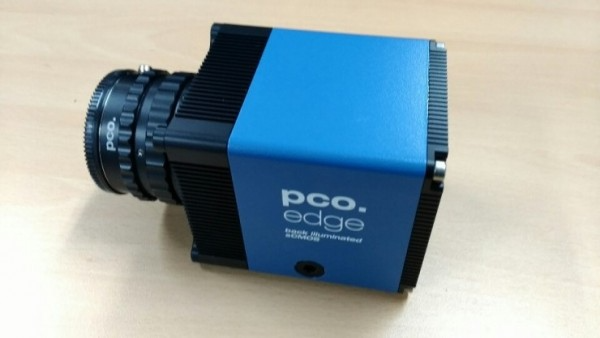

pco. edge 4.2 bi
- back illuminated 16 bit sCMOS sensor technology
- adjustable down to -25 °C air & water cooling
- high resolution 2048 x 2048 pixel
- pixel size: 6.5 x 6.5 µm²
- quantum efficiency up to 95 %
- maximum frame rate 40 fps @ full resolution
- dynamic range 26667 : 1
- lowest dark current (typ.) 0.2 e-/pixel/s
- rolling shutter
- exposure times from 10 μs to 20 s
- USB 3.1 Gen1 interface
- 85 x 80 x 105mm
특징
고감도, 저노이즈, 빠른속도, 작은 크기
